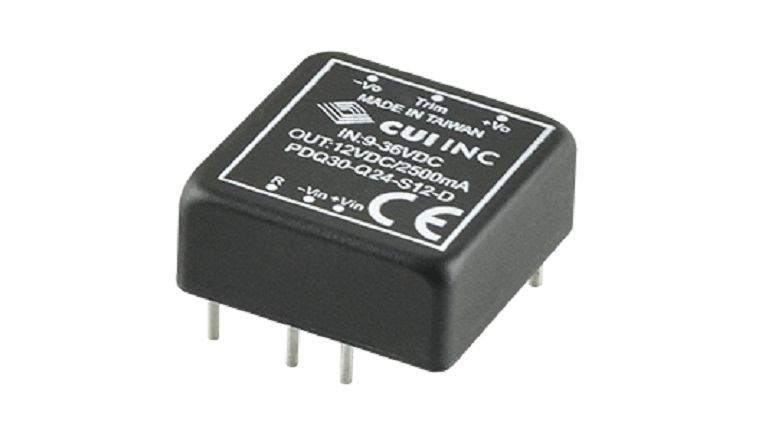

CUI Inc PDQ30-D series encapsulated 30W isolated DC-DC converter

The PDQ30-D Series is an encapsulated 30W isolated DC-DC converter  packaged in an industry standard 1” x 1” footprint. These low-profile modules feature a 4:1 input voltage range and offer up to 90% efficiency. Housed in a compact DIP package and featuring a wide -40°C to +105°C operating temperature range, the series is suitable for convection-cooled equipment.

Features

• Up to 30 W isolated output
• Industry standard 1” x 1” package
• 4:1 input range
• Single/dual regulated output
• Over voltage, input under voltage lockout, and short circuit protections
• 1,500 Vdc isolation voltage
• Five-sided shielded case
• Remote on/off control
• Output trim
• -40°C to +105°C temperature range
• Efficiency up to 90%
• EN 62368-1
• Meets UL 62368-1

Applications

• Microcontrollers
• Datacom
• Telecom
• Remote sensor systems
• Portable electronics
