STMicroelectronics STM32WBA Series

Certified for Bluetooth® Low Energy 5.4 protocol, STM32WBA series allows nonexpert developers to easily add wireless communication to their device, at an affordable cost.

STM32WBA offers the essential features for wireless IoT devices including:

• High data rate to ensure fast and reliable data transfer
• Long range capability to enlarge communication range
• High output power to increase communication range thanks to +10 dBm of output power
• Low-power messaging capability to extend battery lifetime

Based on the Arm® Cortex®-M33 core featuring TrustZone® technology, the STM32WBA series provides a high level of security, protecting data, IP, and preventing hacks or device cloning.

Leveraging the STM32U5 architecture, the STM32WBA series is an ultra-low power platform and offers inherited digital and analog peripherals, suitable for many applications, from industrial, to smart home and consumer markets.

The STM32WBA wireless MCU embeds large memory to sustain both applications and connectivity activities, coming with up to 1 Mbyte of flash memory and 128 Kbytes of RAM. A smart set of peripherals like ADC, touch sensing, times, make this product a self-sufficient application wireless MCU.

Benefits

• Simplify your platform using a wireless application MCU processor
• Create innovative device based on Bluetooth® Low Energy 5.4 technology capabilities
• Extend far end communications range thanks to +10 dBm output power
• Increase battery life with the advertising extension for device communication
• Ensure fast and reliable data transfer
• Make efficient application processing based on 407 CoreMark score
• Protects your IP and increase privacy protection based on SESIP3 device capability
• Fasten time-to market relying on market proven STM32Cube ecosystem

Applications

• Power tools
• Medical
• Home automation
• Industrial
• Smart home

Block diagram

Featured Product

STM32WBA54 & STM32WBA55

Wireless Arm Cortex-M33 Trust Zone MCU 100 MHz, Bluetooth LE 5.4, 802.15.4, ZigBee

The STM32WBA55 is Bluetooth LE 5.4 audio compliant, supporting streaming features like Auracast broadcasting that enables new audio sharing use cases. STM32WBA54/55 are now extending the STM32WBA Series, supporting the latest protocols (Bluetooth® Low Energy 5.4, IEEE 802.15.4 communication protocols, Zigbee®, Thread and Matter). The STM32WBA54/55 line brings designers flexibility while ensuring enhanced security with Flash memory size from 512 K to 1M and RAM size from 96 K to 128 K.

Read More

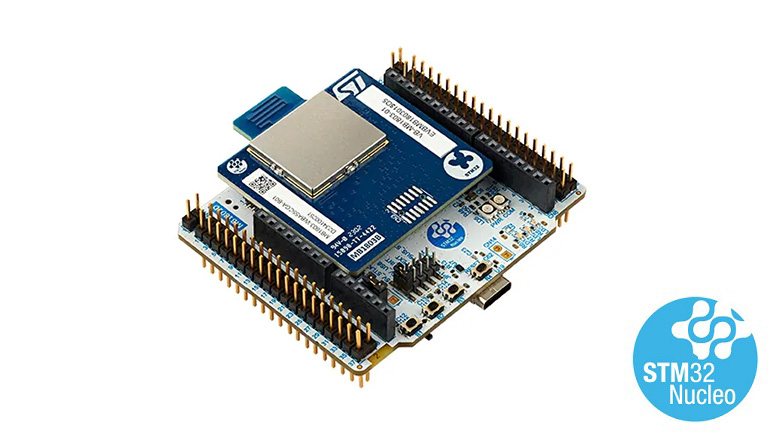

NUCLEO-WBA52CG - STM32 Nucleo-64 development board with STM32WBA52CG MCU

NUCLEO-WBA52CG is a Bluetooth^® Low Energy wireless and ultra-low-power board embedding a powerful and ultra-low-power radio compliant with the Bluetooth^® Low Energy SIG specification v5.3.

The ARDUINO^® Uno V3 connectivity support and the ST morpho headers allow the easy expansion of the functionality of the STM32 Nucleo open development platform with a wide choice of specialized shields.

Request free sample kit



Features

• Ultra-low-power wireless STM32WBA52CG microcontroller based on the Arm® Cortex®‑M33 core, featuring 1 Mbyte of flash memory and 128 Kbytes of SRAM in a UFQFPN48 package
• MCU RF board (MB1863):
  • 2.4 GHz RF transceiver supporting Bluetooth® specification v5.3
  • Arm® Cortex® M33 CPU with TrustZone®, MPU, DSP, and FPU
  • Integrated PCB antenna
• Three user LEDs
• Three user and one reset push-buttons
• Board connectors:
  • USB Micro-B
  • ARDUINO® Uno V3 expansion connector
  • ST morpho headers for full access to all STM32 I/Os
• Flexible power-supply options: ST-LINK USB VBUS or external sources
• On-board STLINK-V3MODS debugger/programmer with USB re-enumeration capability: mass storage, Virtual COM port, and debug port
• Comprehensive free software libraries and examples available with the STM32CubeWB MCU Package
• Support of a wide choice of Integrated Development Environments (IDEs) including IAR Embedded Workbench®, MDK-ARM, and STM32CubeIDE

STM32CubeWBA - STM32Cube MCU Package for STM32WBA series (HAL, Low-Layer APIs and CMSIS, File system, RTOS, BLE/802.15.4, Thread and Zigbee stacks - and examples running on ST boards)

STM32Cube is an STMicroelectronics original initiative to make the life of the developer easier by reducing development effort, time, and cost. STM32Cube covers the whole STM32 portfolio.

STM32Cube includes STM32CubeMX, a graphical software configuration tool that allows the generation of C initialization code using graphical wizards.

It also comprises the STM32CubeWBA MCU Package, composed of the STM32Cube hardware abstraction layer (HAL) and the low-layer (LL) APIs, a consistent set of middleware components such as STMTouch™, STM32_WPAN (Bluetooth® 5.4 profiles and services), Azure® RTOS kernel, OpenBootloader, mbedTLS, TFM, MCUboot, and HCI connectivity services. All embedded software utilities are delivered with a full set of examples running on STMicroelectronics boards.

The STM32Cube HAL is an STM32 embedded software layer that ensures maximized portability across the STM32 portfolio, while the LL APIs make up a fast, light-weight, expert-oriented layer, which is closer to the hardware than the HAL. HAL and LL APIs can be used simultaneously with a few restrictions.

Both the HAL and LL APIs are production-ready and have been developed in compliance with CodeSonar®, MISRA C®:2012 guidelines and ISO/TS 16949. Furthermore, STMicroelectronics specific validation processes add a deeper-level qualification.

The STM32CubeWBA gathers in one single package all generic embedded software components required to develop an application on STM32WBA series microcontrollers. Following STM32Cube initiative, this set of components is highly portable, not only within the STM32WBA series, but also to other STM32 series. In addition, the low-layer APIs provide an alternative, high-performance, low-footprint solution to the STM32CubeWBA HAL at the cost of portability and simplicity.

HAL and LL APIs are available in open-source BSD license for user convenience.

Get Software

Features

• Consistent and complete embedded software offer that frees the user from dependency issues
• Maximized portability between all STM32 series supported by STM32Cube
• Hundreds of examples for easy understanding
• High quality HAL using CodeSonar® static analysis tool
• High quality low-layer APIs (LL) using CodeSonar® static analysis tool
• STM32WBA series middleware: STMTouch™(STM32 touch sensing library) and Azure® RTOS kernel, OpenBootloader, mbedTLS, TFM, MCUboot
• STM32WBA-specific middleware: STM32_WPAN, including Bluetooth® Low Energy 5.4 profiles, services and stack, certified with Bluetooth® SIG
• Free user-friendly license terms. Update mechanism with new-release notification capability
• Published on GitHub in addition to www.st.com to propagate bug fixes and improvements faster, open for pull requests and issues to facilitate user contributions and direct feedback

Request your free NUCLEO-WBA52CG - STM32 Nucleo-64 development board with STM32WBA52CG MCU

NUCLEO-WBA52CG is a Bluetooth^® Low Energy wireless and ultra-low-power board embedding a powerful and ultra-low-power radio compliant with the Bluetooth^® Low Energy SIG specification v5.3.

The ARDUINO^® Uno V3 connectivity support and the ST morpho headers allow the easy expansion of the functionality of the STM32 Nucleo open development platform with a wide choice of specialized shields.

BUY ONLINE AT FARNELL

STMicroelectronics

M95P32-I

If you need more memory capacity either to record data, to store a firmware or both, and your application has tied power budget select the Serial Page EEPROM which best suits your needs from ST portfolio.

Read More

Article

Transformative IoT solutions with the STM32 32-bit Wireless MCU Series

Choosing the right microcontroller for your project is crucial. In this post, we’ll explore the capabilities of ST’s 32-bit wireless MCU STM32WBA52 and the IoT applications that benefit most from them.

Read More
