STMicroelectronics STM32C5
STM32C5 - Arm Cortex®-M33 core up to 144 MHz with FPU, MPU, and flexible NVIC
The STM32C5 Series is based on the high performance Arm® Cortex®-M33 32-bit core and operate at a frequency of up to 144 MHz.
The Cortex®-M33 core also implements a full set of digital signal processing (DSP) instructions and a memory protection unit (MPU) that enhances the application security.
The devices embed high speed memories (up to 1 Mbyte Flash memory and 256 Kbytes SRAM), one Octo-SPI memory interface (for STM32C5Axxx product lines), and an extensive range of enhanced I/Os, peripherals connected to three APB buses, three AHB buses, and a 32 bit multi AHB bus matrix.
Benefits
- Enhanced performance
- Without impacting end-product cost
- Building on the foundation of the STM32
Applications
- Smart homes & appliances
- Factory automation
- Entertainment
Tools

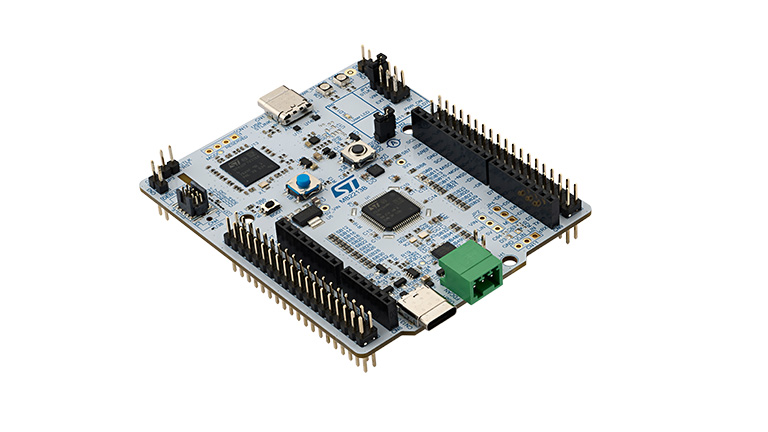

NUCLEO-C542RC
STM32 Nucleo-64 development board with STM32C542RC MCU, supports Arduino and ST morpho connectivity
The STM32 Nucleo-64 board provides an affordable and flexible way for users to try out new concepts and build prototypes by choosing from the various combinations of performance and power consumption features provided by the STM32 microcontroller. For the compatible boards, the internal or external SMPS significantly reduces power consumption in Run mode.
The ARDUINO® Uno V3 connectivity support and the ST morpho headers allow the easy expansion of the functionality of the STM32 Nucleo open development platform with a wide choice of specialized shields.
The STM32 Nucleo-64 board does not require any separate probe as it integrates the ST-LINK debugger/programmer.
The STM32 Nucleo-64 board comes with the STM32 comprehensive free software libraries and examples available with the STM32Cube MCU Package.

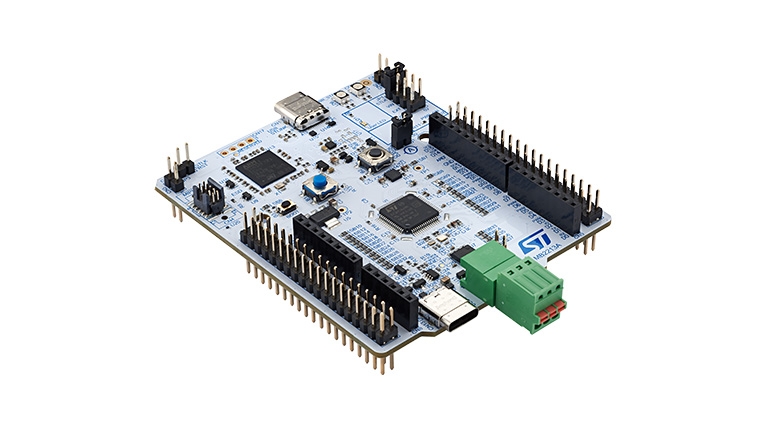

NUCLEO-C562RE
STM32 Nucleo-64 development board with STM32C562RE MCU, supports Arduino and ST morpho connectivity
The STM32 Nucleo-64 board provides an affordable and flexible way for users to try out new concepts and build prototypes by choosing from the various combinations of performance and power consumption features provided by the STM32 microcontroller. For the compatible boards, the internal or external SMPS significantly reduces power consumption in Run mode.
The ARDUINO® Uno V3 connectivity support and the ST morpho headers allow the easy expansion of the functionality of the STM32 Nucleo open development platform with a wide choice of specialized shields.
The STM32 Nucleo-64 board does not require any separate probe as it integrates the ST-LINK debugger/programmer.
The STM32 Nucleo-64 board comes with the STM32 comprehensive free software libraries and examples available with the STM32Cube MCU Package.

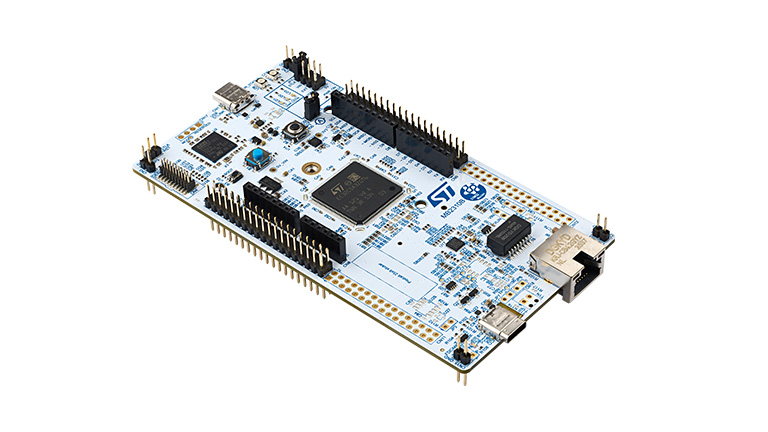

NUCLEO-C5A3ZG
STM32 Nucleo-144 development board with STM32C5A3ZG MCU, supports Arduino and ST morpho connectivity
The STM32 Nucleo-144 board provides an affordable and flexible way for users to try out new concepts and build prototypes by choosing from the various combinations of performance and power consumption features, provided by the STM32 microcontroller. For the compatible boards, the internal or external SMPS significantly reduces power consumption in Run mode.
The STM32 Nucleo-144 board offers easy means to expand the functionality of the Nucleo open development platform with a wide choice of specialized shields through several expansion connectors:
- ARDUINO® Uno V3 connector, which is extended as part of ST Zio expansion connector on some boards
- ST morpho headers providing access to the microcontroller's I/O pins
The STM32 Nucleo-144 board does not require any separate probe as it integrates the ST-LINK debugger/programmer.
The STM32 Nucleo-144 board comes with the STM32 comprehensive free software libraries and examples available with the STM32Cube MCU Package.
Link & Document |
Upgrade your entry-level design without raising your budget with the new STM32C5 MCU series
Join this one-hour webinar on the brand-new STM32C5 MCUs, introduced at embedded world 2026, and discover how they bring a new level of performance to cost-sensitive mainstream embedded designs, all while keeping development simple.
STMicroelectronics
STM32
STM32 MCUs and MPUs offer products combining very high performance, real-time capabilities, digital signal processing, low-power / low-voltage operation, and connectivity, while maintaining full integration and ease of development.
