STMicroelectronics STM32U0 Series

STM32U0 - The latest generation of entry level ultra-low power MCUs

STMicroelectronics STM32U0 - front and back side of the MCU

Based on the Arm® Cortex®-M0+ core, the STM32U0 series offers high integration, reducing BoM costs and making it an attractive option for cost-conscious customers.

Offering 16 to 256 Kbytes of flash memory and 12 to 40 Kbytes of SRAM, the STM32U0 series is available in a large choice of packages (TSSOP, UQFN, LQFP, UFBGA and WLCSP) from 20 to 81 pins. Most of the packages are pin-to-pin compatible to STM32L0, STM32L1 and STM32L4.



STM32U0 contributes to a more sustainable approach

  • Energy savings - STM32U0 requires less energy than previous product generations.
  • Longer product lifetime - Expanding battery usage. Enabling batteries to last up to twice as long depending on the application.



Key features & benefits

  • Energy savings & longer product usage
  • Integrated features
  • Cost effectivenessy



Applications

  • Industrial
  • Medical
  • Smart metering
  • Consumer



Block diagram

STMicroelectronics STM32U0 Block diagram





STM32U0 portfolio series

STMicroelectronics STM32U0 portfolio series





STM32U083C-DK - Discovery kit with STM32U083MC MCU

The STM32U083C-DK Discovery kit is a complete demonstration and development platform for the STM32U083MCT6 microcontroller. It is used as a reference design for the user application development before porting to the final product.

The full range of hardware features on the board helps the user to evaluate all the peripherals (USB FS device, segment LCD, touchkey, temperature sensor, and others) and to develop applications. The ARDUINO® Uno V3, mikroBUS™, and extension connectors provide easy connection to extension shields or daughterboards for specific applications.

The STM32U083C-DK Discovery kit does not require any separate probe as it integrates the STLINK-V2EC debugger/programmer. It is operated by plugging it into a PC through a standard USB Type-A or USB Type-C® to USB Type-C® cable.



Features

  • Ultra-low-power STM32U083MC microcontroller based on the Arm® Cortex®‑M0+ core, featuring 256 Kbytes of flash memory and 40 Kbytes of SRAM in an LQFP80 package
  • 4×24-segment LCD
  • Three user LEDs
  • Reset push-button
  • User joystick
  • Touchkey
  • Temperature sensor
  • Board connectors:
    • ST-LINK USB Type-C® connector
    • User USB Device with USB Type-C® connector
    • mikroBUS™ connectors
    • MIPI® debug in connector (Arm® Cortex® 10‑pin 1.27 mm‑pitch debug connector over STDC14 footprint)
    • Extension connectors for full access to all STM32 I/Os
    • VBAT dedicated connector provides the capability to power the board on a battery
  • Flexible power-supply options: ST-LINK USB VBUS, USB connector, or external sources
  • VDD power supply at 1.8 or 3.3 V by step-down converter
  • On-board STLINK-V2EC debugger/programmer with USB re-enumeration capability: mass storage, Virtual COM port, and debug port
  • Comprehensive free software libraries and examples available with the STM32Cube MCU Package
  • Support of a wide choice of Integrated Development Environments (IDEs) including IAR Embedded Workbench®, MDK-ARM, and STM32CubeIDE



STMicroelectronics STM32U083C-DK - front side of the board





NUCLEO-U031R8 - STM32 Nucleo-64 development board with STM32U031R8 MCU, supports Arduino

The STM32 Nucleo-64 board provides an affordable and flexible way for users to try out new concepts and build prototypes by choosing from the various combinations of performance and power consumption features provided by the STM32 microcontroller. For the compatible boards, the internal or external SMPS significantly reduces power consumption in Run mode.

The ARDUINO® Uno V3 connectivity support and the ST morpho headers allow the easy expansion of the functionality of the STM32 Nucleo open development platform with a wide choice of specialized shields.

The STM32 Nucleo-64 board does not require any separate probe as it integrates the ST-LINK debugger/programmer.

The STM32 Nucleo-64 board comes with the STM32 comprehensive free software libraries and examples available with the STM32Cube MCU Package.



Features

  • Common features
    • STM32 microcontroller in an LQFP64 or LQFP48 package
    • 1 user LED shared with ARDUINO®
    • 1 user and 1 reset push-buttons
    • 32.768 kHz crystal oscillator
    • Board connectors:
      • ARDUINO® Uno V3 expansion connector
      • ST morpho extension pin headers for full access to all STM32 I/Os
    • Flexible power-supply options: ST-LINK USB VBUS or external sources
    • Comprehensive free software libraries and examples available with the STM32Cube MCU Package
    • Support of a wide choice of Integrated Development Environments (IDEs) including IAR Embedded Workbench®, MDK-ARM, and STM32CubeIDE
  • Features specific to some of the boards
    • External or internal SMPS to generate Vcore logic supply:NUCLEO-L412RB-P, NUCLEO-L433RC-P, NUCLEO-L452RE-P, and NUCLEO-U545RE-Q
    • 24 MHz or 48 MHz HSE:NUCLEO-C031C6, NUCLEO-G431RB, NUCLEO-G474RE, and NUCLEO-G491RE
    • User USB Device full speed, or USB SNK/UFP full speed:NUCLEO-H503RB, NUCLEO-H533RE, and NUCLEO-U545RE-Q
    • Cryptography:NUCLEO-H533RE, NUCLEO-U083RC, and NUCLEO-U545RE-Q
    • Board connectors:
      • External SMPS experimentation dedicated connector:NUCLEO-L412RB-P, NUCLEO-L433RC-P, NUCLEO-L452RE-P, and NUCLEO-U545RE-Q
      • USB Type-C®, Micro-B, or Mini-B connector for the ST-LINK
      • USB Type-C® user connector:NUCLEO-H503RB, NUCLEO-H533RE, and NUCLEO-U545RE-Q
      • MIPI® debug connector:NUCLEO-G431RB, NUCLEO-G474RE, NUCLEO-G491RE, NUCLEO-H503RB, NUCLEO-H533RE, NUCLEO-U031R8, and NUCLEO-U083RC
    • On-board ST-LINK (STLINK/V2-1, STLINK-V3E, STLINK-V2EC, or STLINK-V3EC) debugger/programmer with USB re-enumeration capability: mass storage, Virtual COM port, and debug port



STMicroelectronics NUCLEO-U031R8 - front side of the board





NUCLEO-U083RC - STM32 Nucleo-64 development board with STM32U083RC MCU, supports Arduino

The STM32 Nucleo-64 board provides an affordable and flexible way for users to try out new concepts and build prototypes by choosing from the various combinations of performance and power consumption features provided by the STM32 microcontroller. For the compatible boards, the internal or external SMPS significantly reduces power consumption in Run mode.

The ARDUINO® Uno V3 connectivity support and the ST morpho headers allow the easy expansion of the functionality of the STM32 Nucleo open development platform with a wide choice of specialized shields.

The STM32 Nucleo-64 board does not require any separate probe as it integrates the ST-LINK debugger/programmer.

The STM32 Nucleo-64 board comes with the STM32 comprehensive free software libraries and examples available with the STM32Cube MCU Package.



Features

  • Common features
    • STM32 microcontroller in an LQFP64 or LQFP48 package
    • 1 user LED shared with ARDUINO®
    • 1 user and 1 reset push-buttons
    • 32.768 kHz crystal oscillator
    • Board connectors:
      • ARDUINO® Uno V3 expansion connector
      • ST morpho extension pin headers for full access to all STM32 I/Os
    • Flexible power-supply options: ST-LINK USB VBUS or external sources
    • Comprehensive free software libraries and examples available with the STM32Cube MCU Package
    • Support of a wide choice of Integrated Development Environments (IDEs) including IAR Embedded Workbench®, MDK-ARM, and STM32CubeIDE
  • Features specific to some of the boards
    • External or internal SMPS to generate Vcore logic supply:NUCLEO-L412RB-P, NUCLEO-L433RC-P, NUCLEO-L452RE-P, and NUCLEO-U545RE-Q
    • 24 MHz or 48 MHz HSE:NUCLEO-C031C6, NUCLEO-G431RB, NUCLEO-G474RE, and NUCLEO-G491RE
    • User USB Device full speed, or USB SNK/UFP full speed:NUCLEO-H503RB, NUCLEO-H533RE, and NUCLEO-U545RE-Q
    • Cryptography:NUCLEO-H533RE, NUCLEO-U083RC, and NUCLEO-U545RE-Q
    • Board connectors:
      • External SMPS experimentation dedicated connector:NUCLEO-L412RB-P, NUCLEO-L433RC-P, NUCLEO-L452RE-P, and NUCLEO-U545RE-Q
      • USB Type-C®, Micro-B, or Mini-B connector for the ST-LINK
      • USB Type-C® user connector:NUCLEO-H503RB, NUCLEO-H533RE, and NUCLEO-U545RE-Q
      • MIPI® debug connector:NUCLEO-G431RB, NUCLEO-G474RE, NUCLEO-G491RE, NUCLEO-H503RB, NUCLEO-H533RE, NUCLEO-U031R8, and NUCLEO-U083RC
    • On-board ST-LINK (STLINK/V2-1, STLINK-V3E, STLINK-V2EC, or STLINK-V3EC) debugger/programmer with USB re-enumeration capability: mass storage, Virtual COM port, and debug port

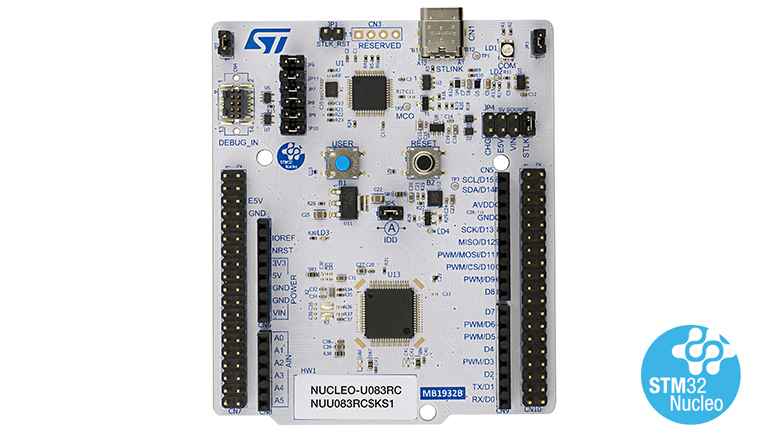

STMicroelectronics NUCLEO-U083RC - front side of the board
