Otava 14-24 GHz Ultra Linear Tunable Filter

The wide range of control provides flexibility of frequency tuning from 14 to 24 GHz with a typical insertion loss of 7 dB.

Otava Ultra Linear Tunable Filters provide solutions for systems that need to remove spurs or unwanted signals/interferences and replace switched filter banks. Application areas include but not limited, radio, communication, military radar, automotive, and instrumentation.

Features

• 14 GHz to 24 GHz
• Digitally Tunable
• In Band IIP3: > 40 dBm
• Power Supplies: +1.8 V, +2.5 V
• SOI Technology
• Single Chip Replacement for Discrete Filter Banks
• Flip Chip C4 Bump
• Die Dimension: 1.634 mm x 1.637 mm

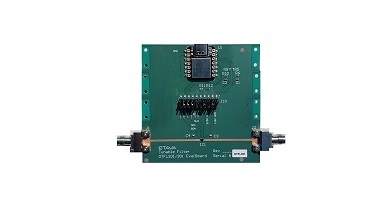

Evaluation Board for the Otava OTFL201 Tunable Filter

Evaluation boards for the Otava Tunable Filers are designed to test the performance of the filter. Each board has 2 RF ports that are built with edge mount connectors, DC and digital I/O are accessible through a microcontroller. A software GUI is included to provide control of the filter settings.

Otava Ultra Linear Tunable Filters provide solutions for systems that need to remove spurs or unwanted signals/interferences and replace switched filter banks. Application areas include but not limited, radio, communication, military radar, automotive, and instrumentation.

Features

• 14 GHz to 24 GHz
• Digitally Tunable
• In Band IIP3: > 40 dBm
• Power Supplies: +1.8 V, +2.5 V
• SOI Technology
• Single Chip Replacement for Discrete Filter Banks
• Flip Chip C4 Bump
• Die Dimension: 1.634 mm x 1.637 mm
