STMicroelectronics STSPIN32F025x & STSPIN32F060x
STSPIN32F025x and STSPIN32F060x system-in-package are an extremely integrated solution for driving three-phase applications
It embeds an STM32F031 MCU featuring an ARM® 32-bit Cortex®-M0 CPU, has extended temperature range -40 °C - 125 °C, and a 250 V or 600 V triple half-bridge gate driver, able to drive N-channel power MOSFETs or IGBTs.
A comparator featuring advanced smartSD function, high-voltage bootstrap diodes, multi-channel 12-bit ADC, anti-cross-conduction, deadtime and UVLO protection are also included.
Key features
- Embeds STM32F0 MCU and 250 V / 600 V 3-phase BLDC Driver
- Fully compatible with STM32 ecosystem
- Extended temperature range: -40 to +125 °C
- Smart shutdown (smartSD) and protection functions
Additional features
- Three-phase gate drivers
- High voltage rail up to 600 V
- Driver current capability:
- STSPIN32F0251: 200/350 mA source/sink current
- STSPIN32F0252:1/0.85 A source/sink current
- STSPIN32F0601: 200/350 mA source/sink current
- STSPIN32F0602:1/0.85 A source/sink current
- dV/dt transient immunity ±50 V/ns
- Gate driving voltage range from 9V to 20V
- 32-bit ARM® Cortex®-M0 core:
- Up to 48 MHz clock frequency
- 4-Kbyte SRAM with HW parity
- 32-Kbyte Flash memory with option bytes used for write/readout protection
- 21 general-purpose I/O ports (GPIO)
- 6 general-purpose timers
- 12-bit ADC converter (up to 10 channels)
- I2C, USART, and SPI interfaces
- Matched propagation delay for all channels
- Integrated bootstrap diodes
- Comparator for fast overcurrent protection
- UVLO, Interlocking and deadtime functions
- Smart shutdown (smartSD) function
- Standby mode for low power consumption
- On-chip debug support via SWD
Applications
- 36 - 120 V, High power tools and garden tools
- Home and Industrial refrigerators compressors
- Air conditioning compressors & FANs
- Industrial Pumps
- Home Appliances
- White goods
- 48 V & 72 V Server FANs
- Industrial automation
Evaluation Tools

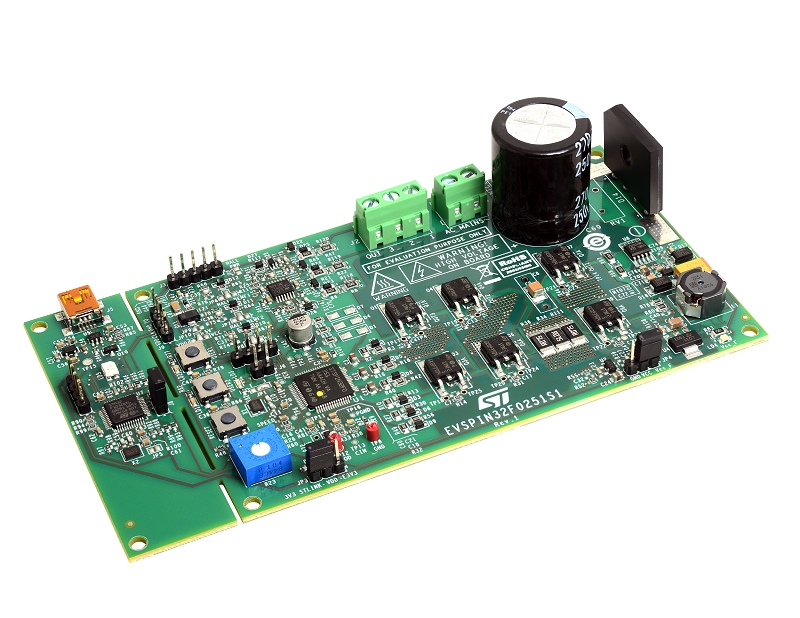

EVSPIN32F0251S1
3-phase inverter based on STSPIN32F0251
The EVSPIN32F0251S1 board is a 3-phase complete inverter in single shunt topology based on the STSPIN32F0251 controller, which embeds a 3 phase 250 V gate driver and a Cortex® M0 STM32 MCU, capable of delivering up to max 16Apeak current.
EVSPIN32F0601S1
3-phase inverter based on STSPIN32F0601
The EVSPIN32F0601S1 board is a 3-phase complete inverter in single shunt topology based on the STSPIN32F0601 controller, which embeds a 3 phase 600 V gate driver and a Cortex®-M0 STM32 MCU, capable of delivering up to max 5.5Apeak current.

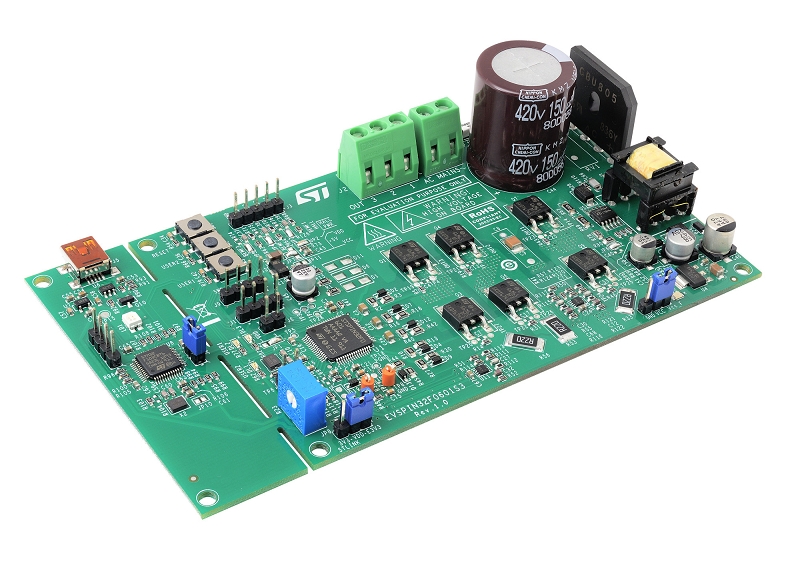

EVSPIN32F0601S3
3-phase inverter based on STSPIN32F0601 with 3-shunt topology
The EVSPIN32F0601S3 board is a 3-phase complete inverter in three shunts configuration based on the STSPIN32F0601 controller, which embeds a 3 phase 600 V gate driver and a Cortex® M0 STM32 MCU, capable of delivering up to max 4.5Apeak current.

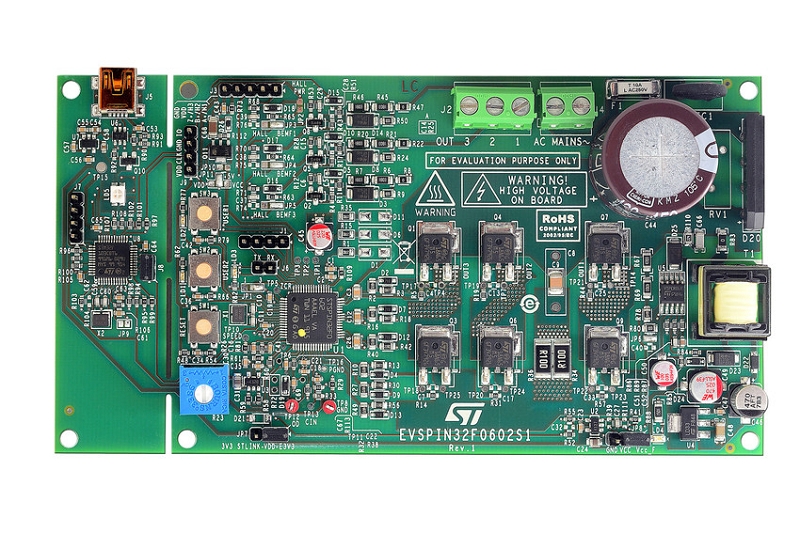

EVSPIN32F0602S1
3-phase inverter based on STSPIN32F0602
The EVSPIN32F0602S1 board is a 3-phase complete inverter in single shunt topology based on the STSPIN32F0602 controller, which embeds a 3-phase 600 V gate driver and a Cortex®-M0 STM32 MCU, capable of delivering up to max 8.5Apeak current.
