The EasyEVSE development platform provides software, boards, cables, design files and detailed instructions to quickly simulate a charging control session between a charging station and an EV. This modular scalable platform is the foundation for developing secure wireless cloud connectivity, accurate energy billing, safe control, one-tap NFC authentication and ISO 15118 power line communications across a HomePlug Green PHY.
If you're interested in learning more about this solution please contact our EV charging experts who can support you with the best solutions for your project.
Learn more about our total solution approach and see EV charging applications, featured EV charging articles, EV charging solutions and other useful resources.
EV OVERVIEWApplications
Industrial
- EV Supply Equipment (EVSE)
Features
Hardware
- The solution ships as a ready-to-use, wired and pre-tested kit containing the following hardware:
- 2 x MCIMX93-EVK boards which include the LBES5PL2EL Murata module with NXP IW612 chipset (Wi-Fi 6, BLE 5.2)
- 2 x EVSE-SIG-BRD signal board with a microcontroller and transceivers to support a variety of EV charging control protocols, such as an NXP LPC55S36 MCU with PWM for the SAE J1772 control pilot, an NXP TJA1021BT LIN transceiver for SAE J3068, and a Lumissil CG5317 HomePlug Green PHY for ISO 15118
- OM-SE050ARD-E EdgeLock SE050 development board
- TWR-KM35Z75M metering board
- OM27160B1EVK NFC development kit
- DY1212W-4856 12.1" TFT LCD display with LVDS connector (touch panel)
- 10 x cables
- 3 x power supplies
- 2 x plexiglass mounts
Software
- The solution contains specific application software and miscellaneous tools that help to evaluate, run and further develop a full-featured EVSE
- Complimentary example software is downloadable at the link below and consists:
- Sample source code on the MPU:
- EasyEVSE Yocto manifest
- EasyEVSE Yocto meta layer containing recipes for building the image
- EasyEVSE Linux userspace applications
- Sampe source code on the KM MCU:
- Meter project for TWRKM3x7x board
- Azure IoT Central templates
- EasyEVSE application template shareable link (EVSEAppShareLink)
- EasyEVSE IoT central JSON file
- Sample source code on the MPU:
EasyEVSE EV Charging Station Development Platform
The cloud-connected EasyEVSE EV charging station development platform provides hardware configuration instructions and example software to quickly set up a secure connection between a simulated electric vehicle supply equipment (EVSE) and a cloud-based application. Use the modular, scalable platform as the foundation to start building differentiated EVSE systems that support device-to-cloud and cloud-to-device communications, accurate energy billing and one-tap NFC authentication.
EasyEVSE EV Charging Signal Board

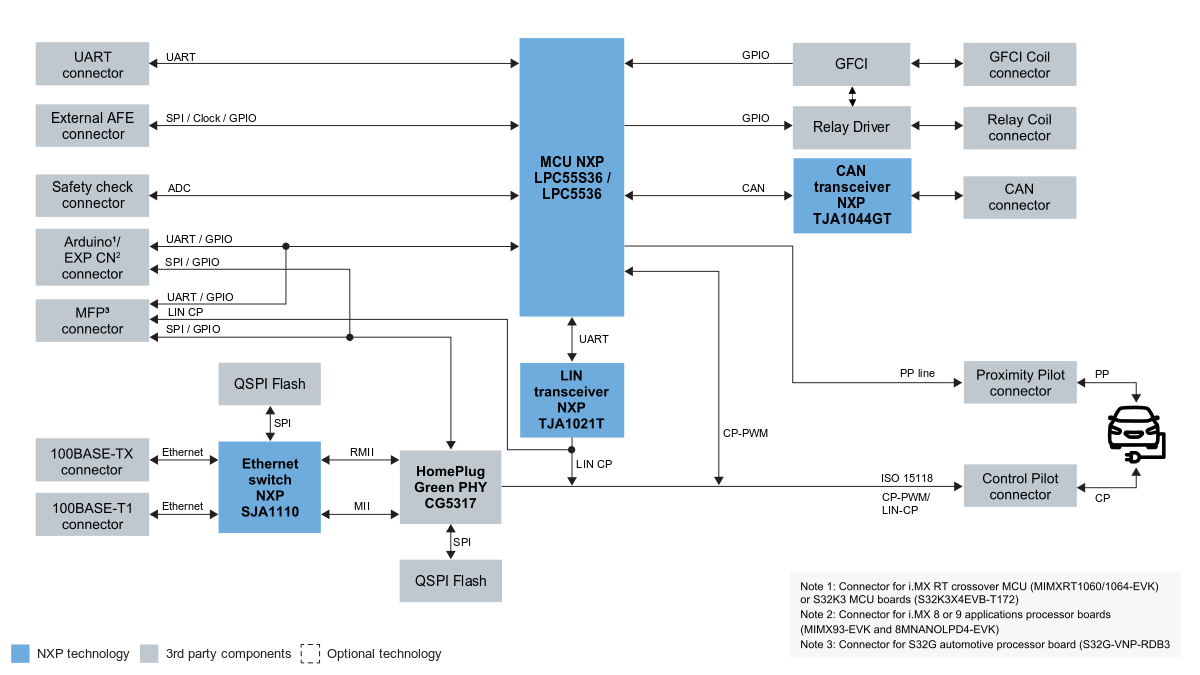

The EVSE-SIG-BRD Signal Board is an add-on for several EV charging development platforms. It hosts an LPC55S36 MCU for the SAE J1772 control pilot, a TJA1021BT LIN transceiver for SAE J3068 and a Lumissil CG5317 HomePlug Green PHY for ISO 15118 communications. It supports the proximity pilot, GFCI, relay drive, Ethernet and CAN PHYs, and is compatible with NXP development boards for i.MX 8, 9, RT1060, RT1064 or S32G-VNP-RDB3.
