onsemi RSL10 SIP – Bluetooth® 5 System-in-Package
The RSL10 SIP offers the easiest way to bring the industry's lowest power Bluetooth low energy technology to wireless applications.
Fully certified to worldwide wireless standards (FCC, CE, IC, KCC*, MIC), the RSL10 SIP significantly reduces time to market by removing the need for any additional antenna design considerations.
The ready-to-use RSL10 SIP features an integrated antenna, RSL10 Radio SoC , and all passive components in a single, miniature package.
Features
- Fully-certified to worldwide regulatory standards
- Ultra-Low-Power:
- Industry's lowest power consumption in Deep Sleep Mode (62.5 nW) and Rx in Receive Mode (7 mW)
- Industry's best EEMBC® ULPMark™ scores (1090 ULPMark CP @ 3 V; 1260 @ 2.1 V)
- Complete solution
- Advanced multi-protocol wireless functionality
- Supports Bluetooth Low Energy and 2.4 GHz proprietary/custom protocols
- Rx Sensitivity: -93 dBM
- Transmitting Power: -17 to 0 dBm
- Supports Firmware Over The Air (FOTA)
- Other key technical features
- Built-in power management
- Advanced dual-core architecture
- 1.1 to 3.3 Voltage Supply Range
- 384 kB Flash, 76 kB Program Memory, 88 kB Data Memory
- IP protection feature to secure flash contents
- Configurable analog and digital sensor interfaces (GPIOs, LSADs, I2C, SPI, PCM)

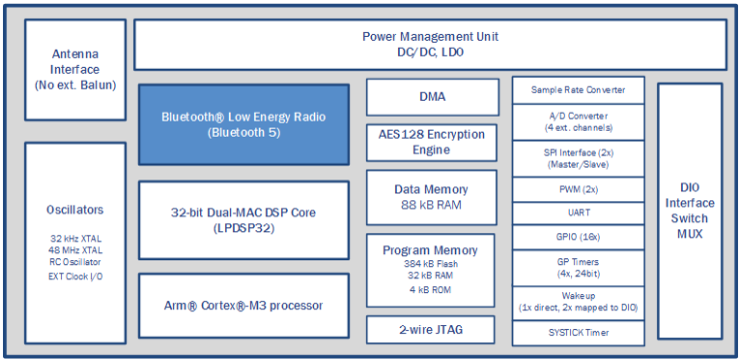

Application diagram
Applications
- IoT edge-node applications
- Bluetooth low-energy technology
- Energy harvesting
- Wearables
| Product / Evaluation Board | Description | Package |
|---|---|---|
| NCH-RSL10-101S51-ACG | System-in-Package, Bluetooth® 5 Certified | SIP-51 |
| RSL10-SIP-001GEVB | RSL10 SIP Development Board | |
| RSL10-USB001GEVK | RSL10 USB Dongle |
Development tool

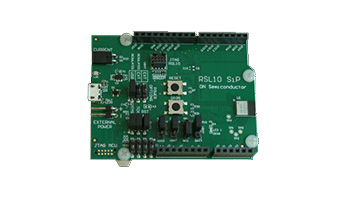

RSL10-SIP-001GEVB: RSL10 SIP Development Board
With an Arduino-compliant form factor and on-board J-Link adaptor, the RSl10 SIP development board is used to effortlessly develop Bluetooth® low energy applications based on the RSL10 System-in-Package (SiP).
Features
- Integrated antenna (included as part of the RSL10 SIP
- Onboard 4-bit level translator to translate the LPDSP32 debug interface at low voltage to a 3.3 V JTAG debugger
- Access to all RSL10 SIP peripherals via standard 0.1″headers
- Alternate on-board SWJ−DP (serial-wire and/or JTAG) interface for Arm® Cortex®−M3 processor debugging
- On-board J-link adaptor provides a SWJ−DP (serial-wire and/or JTAG) interface that enables you to debug the board using a USB connection to the PC
- Compliance with the Arduino form factor
RSL10-USB001GEVK: RSL10 USB Dongle
The RSL10 USB Dongle enables rapid prototyping of peripherals for Bluetooth® Low Energy devices. Using the included Bluetooth® Low Energy Explorer software, engineers can develop, test, and evaluate Bluetooth-based applications quickly and easily. Using a 2 Mbps connection, the RSL10 USB dongle acts as a generic central device during the development process and can be used to scan for available devices, establish connections, pair, bond, and list services and characteristics.
Features
- Certified to international wireless regulations
- Bluetooth® low-energy explorer software
- Bluetooth® 5 certified, single mode compliant (Bluetooth low-energy)
- Supports Master and Slave modes
- Supports up to four connections
- Radio performance
- CE, FCC, IC, MIC
- Host interfaces
- Diagnose Bluetooth® Low Energy connections during application development
- Transmit power: +6dBm
- Receiver sensitivity: -94dBm
- USB (virtual COM port emulation)
