STMicroelectronics STM32H523 & 533

The STM32H523 and STM32H533 microcontrollers extend the STM32 high performance portfolio and offer enhanced performance, security, power efficiency and embedded peripherals.

The STM32H523 product line provides 256 to 512 Kbytes of Flash memory, 272 Kbytes SRAM, and 39 to 144 pins packages in BGA and LQFP profiles, as well as WLCSP39 and UFQFN48 packages.

The STM32H533 product line is available with 512 Kbytes of Flash memory and provides an additional encryption accelerator engine (AES, PKA, and OTFDEC), and ST-iROT.

These lines contain the Arm Cortex®-M33 core with TrustZone® for Armv8-M, DSP, and floating‐point unit (FPU) running up to 250 MHz with an optional extended ambient temperature range up to 125°C.

• Performance
  • At 250 MHz, the STM32H523/533 deliver 375 DMIPS/1023 CoreMark performance executing from Flash memory, with 0-wait states using ST’s ART Accelerator™.
• Embedded peripherals
  • Up to 21 communication peripherals including MIPI-I3C, FDCAN, USB 2.0 full-speed host and device, USB Type-C® / USB Power Delivery, and camera interface
  • Easily extendable memory range using the flexible memory controller with a 16-bit parallel interface, or the Octo-SPI serial Flash memory interface
  • Multiple 16- and 32-bit timers
• Security
  • STM32H533 MCUs include the following additional security features:
  • • STM32Trust RoT (ST-RoT), delivered as X-CUBE-STROT in Q4’2024:
    • Offering turnkey security services to manage confidentiality, authentication and update of software IP thanks to TrustZone®
    • Allows OEM or third-party companies to develop, protect, and isolate critical code from the rest of the main application
    • Abstract the complexity of TrustZone® configuration
  • Target SESIP3 and PSA certified level 3 certifications
  • TrustZone® mechanism for runtime code isolation
  • AES and Public Key Accelerator (PKA) side-channel hardware- resistant
  • TRNG FIPS SP800-90B compliant, target CMVP entropy validation certification
  • Secure Key storage with Hardware Unique Key (HUK)
  • Secure Firmware Install (SFI) for authenticated and protected software IP initial programming
  • Debug access controlled by ECDSA-P256 authentication
  • ST-iRoT: Pre-configured immutable Root of Trust, with secure boot, firmware update, serial loader, and secure debug mechanisms
• Power efficiency
  • 110 µA/MHz typical at VDD = 3.3 V and 25°C in run mode (peripherals off)
  • 150 µA typical in stop mode with full RAM retention (low-power mode)
  • 3.5 µA typical in standby mode (low-power mode)
  • 570 nA typical in VBAT mode with RTC (low-power mode)

Key features & benefits

• More design freedom and reduced time to market
• Performance in space-constrained devices
• Simplified connectivity solution
• Scalable security to address every need:
  • From the most essential security building blocks to fully certified services maintained by ST
• STM32Trust RoT, a turnkey Root of Trust solution, ensuring your application and IPs protection, maintained and certified by STOptimized cost & performance trade-off based on ST’s optimized 40 nm process technology

Applications

• Smart homes and smart cities
• Factory automation
• Consumer devices and peripherals
• Medical applications

Block diagrams

STM32H523

Click to enlarge

STM32H533

Click to enlarge

STM32H523 & 533 portfolio series

Click to enlarge

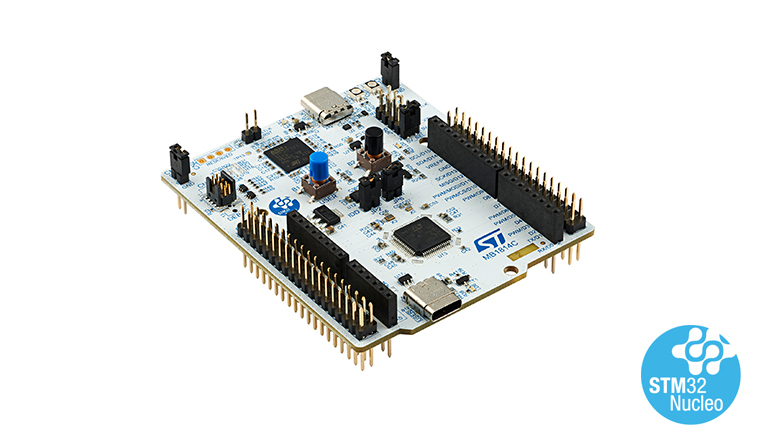

NUCLEO-H533RE - STM32 Nucleo-64 development board with STM32H533RET6 MCU, supports Arduino and morpho connectivity

The STM32 Nucleo-64 board provides an affordable and flexible way for users to try out new concepts and build prototypes by choosing from the various combinations of performance and power consumption features provided by the STM32 microcontroller. For the compatible boards, the internal or external SMPS significantly reduces power consumption in Run mode.

The ARDUINO® Uno V3 connectivity support and the ST morpho headers allow the easy expansion of the functionality of the STM32 Nucleo open development platform with a wide choice of specialized shields.

The STM32 Nucleo-64 board does not require any separate probe as it integrates the ST-LINK debugger/programmer.

The STM32 Nucleo-64 board comes with the STM32 comprehensive free software libraries and examples available with the STM32Cube MCU Package.



Features

• Common features
  • STM32 microcontroller in an LQFP64 or LQFP48 package
  • 1 user LED shared with ARDUINO^®
  • 1 user and 1 reset push-buttons
  • 32.768 kHz crystal oscillator
  • Board connectors:
    • ARDUINO^® Uno V3 expansion connector
    • ST morpho extension pin headers for full access to all STM32 I/Os
  • Flexible power-supply options: ST-LINK USB V_BUS or external sources
  • Comprehensive free software libraries and examples available with the STM32Cube MCU Package
  • Support of a wide choice of Integrated Development Environments (IDEs) including IAR Embedded Workbench^®, MDK-ARM, and STM32CubeIDE
• Features specific to some of the boards
  • External or internal SMPS to generate V_core logic supply:NUCLEO-L412RB-P, NUCLEO-L433RC-P, NUCLEO-L452RE-P, and NUCLEO-U545RE-Q
  • 24 MHz or 48 MHz HSE:NUCLEO-C031C6, NUCLEO-G431RB, NUCLEO-G474RE, and NUCLEO-G491RE
  • User USB Device full speed, or USB SNK/UFP full speed:NUCLEO-H503RB, NUCLEO-H533RE, and NUCLEO-U545RE-Q
  • Cryptography:NUCLEO-H533RE, NUCLEO-U083RC, and NUCLEO-U545RE-Q
  • Board connectors:
    • External SMPS experimentation dedicated connector:NUCLEO-L412RB-P, NUCLEO-L433RC-P, NUCLEO-L452RE-P, and NUCLEO-U545RE-Q
    • USB Type-C^®, Micro-B, or Mini-B connector for the ST-LINK
    • USB Type-C^® user connector:NUCLEO-H503RB, NUCLEO-H533RE, and NUCLEO-U545RE-Q
    • MIPI^® debug connector:NUCLEO-G431RB, NUCLEO-G474RE, NUCLEO-G491RE, NUCLEO-H503RB, NUCLEO-H533RE, NUCLEO-U031R8, and NUCLEO-U083RC
  • On-board ST-LINK (STLINK/V2-1, STLINK-V3E, STLINK-V2EC, or STLINK-V3EC) debugger/programmer with USB re-enumeration capability: mass storage, Virtual COM port, and debug port
