STMicroelectronics L6986H

The L6986H is a step-down monolithic switching regulator able to deliver up to 2 A DC. The output voltage adjustability ranges from 0.85 V to V_IN. Thanks to the P-channel MOSFET high-side power element, the device features 100% duty cycle operation. The wide input voltage range meets the specification for the 5 V, 12 V and 24 V power supplies.

The “low consumption mode” (LCM) is designed for applications active during idle mode, so it maximizes the efficiency at light-load with controlled output voltage ripple. The “low noise mode” (LNM) makes the switching frequency constant and minimizes the output voltage ripple overload current range, meeting the low noise application specifications. The output voltage supervisor manages the reset phase for any digital load (µC, FPGA). The RST open collector output can also implement output voltage sequencing during the power-up phase. The synchronous rectification, designed for high efficiency at medium - heavy load, and the high switching frequency capability make the size of the application compact. Pulse by pulse current sensing on both power elements implements an effective constant current protection.

Features

• 2 A DC output current
• 4 V to 38 V operating input voltage
• Low consumption mode or low noise mode
• 30 μA I_Q at light load (LCM V_OUT = 3.3 V)
• 8 μA I_Q-SHTDWN
• Adjustable f_SW (250 kHz - 2 MHz)
• Fixed output voltage (3.3 V and 5 V) or adjustable from 0.85 V to V_IN
• Embedded output voltage supervisor
• Synchronization
• Adjustable soft-start time
• Internal current limiting
• Overvoltage protection
• Output voltage sequencing
• Peak current mode architecture
• R_{DSON HS} = 180 mΩ, R_{DSON LS} = 150 mΩ
• Thermal shutdown

STSW-eDSim - fast and powerful electrical simulation software for SMPS and analog ICs

eDSim is a fast and powerful electrical simulation tool for SMPS and analog ICs, integrated in the eDesignSuite tool. It features enhanced accuracy and higher convergence speed for SMPS, enabling a simulation time 10-50x faster than the classical analog SPICE simulators.

The tool is a specific version of the SIMPLIS/SIMetrix simulation environment paired with ST model components, for a full electrical simulation with no limitation of nodes and circuit size.

Design your analog circuit using the eDesignSuite engine, display a preview of it in few seconds with full annotated schematic and BOM, and then run the electrical simulation through eDSim to get fast and accurate simulations and reliable design validation, thus reducing the effort and risks related to hardware prototyping.

With the eDSim tool you can also create your schematic from scratch using ST models or simulate your SMPS and analog ICs from a list of predefined ST application schematics - test benches, that you can partially modify according to your needs.

Software release 2024.12 is now available.

Features

• Built-in interface with eDesignSuite
• SMPS circuit full modeling using ST components
• Time domain simulation
• Control loop stability
• Predefined application use-case simulation
• Schematic editor for customization
• Waveform viewer with measurement capabilities

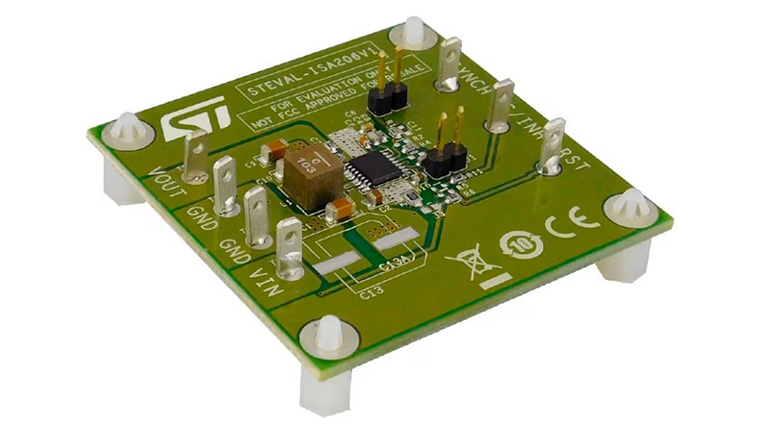

STEVAL-ISA206V1 - 38 V, 2 A synchronous step-down switching regulator evaluation board based on L6986H

The STEVAL-ISA206V1 product evaluation board is based on the L6986H synchronous step-down switching regulator that can deliver up to 2 A and withstand cold cranking across 100% duty cycle, which, along with its wide input operating voltage range, render the L6986H the ideal choice for 12 V - 24 V industrial standard Bus.

Synchronous rectification helps to achieve higher efficiency at full load as well as application compactness, while high-frequency switching (programmable up to 2 MHz) helps to cut on power passive costs and size while staying outside of the AM band.

The device can operate in a low consumption mode (LCM) with a quiescent current down to 30 µA at VIN = 12 V and VOUT = 3.3 V, hence assuring high efficiency at light loads, as required by typical car body applications that active during car parking.

A low noise mode (LNM) is also available to meet the requirements of infotainment applications of forced PWM mode in all loading conditions.

BUY NOW AT FARNELL



The default configuration of the board is output voltage set to 3.3 V configured in LCM, 500 kHz switching frequency, ISKIP current set to high level and the switchover feature disabled. All of these configurations can be easily changed by the user to evaluate different application scenarios.
