Microchip Power-Efficient PoE PSE ICs

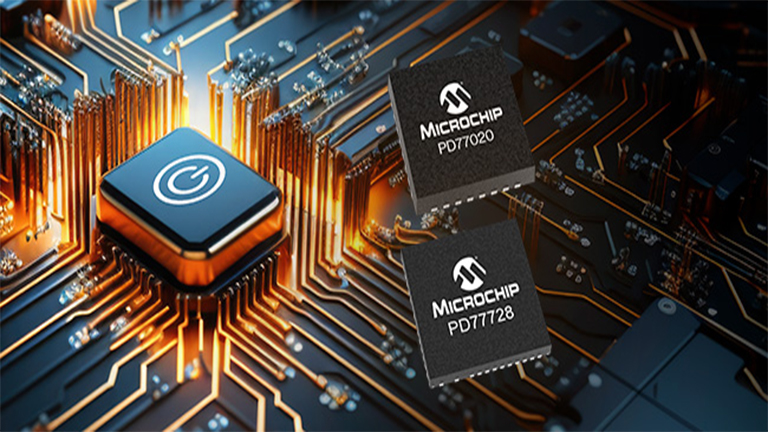

PD77020 & PD77728 - Power-efficient Gen 7 PoE PSE chipsets with improved surge protection
Increase the robustness and reliability of PoE systems
Power over Ethernet (PoE) is a technology that delivers both power and data over a standard Ethernet cable. Devices such as Wi-Fi Access Points, IP Security cameras and IP Phones that utilize PoE are referred to as Powered Devices (PDs). PoE Power Sourcing Equipment (PSE) are devices that deliver power to these PoE-enabled PDs. PoE PSEs include PoE switches, PoE midspans/injectors and wireless routers. The key benefit of PoE is the elimination of the external power supply and flexibility in device placement.
The PoE Team at Microchip has been developing PoE solutions for over 25 years. Over time, they have contributed to the IEEE Ethernet standards for PoE and developed several IEEE 802.3af/at/bt-compliant PoE ICs and systems. Building on the success of their previous solutions, they are now introducing their seventh-generation PSE chipset with enhanced power management and surge protection features to reliably power PoE switches, PoE midspans/injectors and wireless routers.
- PoE Overview
- PoE PSE Chipset
- PoE PD Chipset
- PoE Systems
Microchip PoE Powers Networks
PoE Technology Empowering Networks
PoE technology simplifies installation by transmitting power and data over a single Ethernet cable, enabling quick setup for devices like Ethernet switches, wireless access points, IP cameras, lighting controls, patient monitoring systems, and POS terminals.
Its versatility makes it suitable for various network environments, including wireless, security, smart building, healthcare, and retail networks. PoE addresses key network challenges such as fast and cost-effective installation, handling increased data traffic, providing a reliable power source, and offering remote power management. Additionally, it ensures flexibility, scalability, and energy efficiency. Overall, PoE is widely adopted for its comprehensive benefits.
The PoE Legacy
Microchip is a pioneer and market leader in PoE technology, having introduced the first Power Sourcing Equipment (PSE) IC and Powered Device (PD) IC onto Ethernet infrastructure. Microchip identified the need for power in switches and created the first PoE midspan/injector to deliver both data and power.
Microchip also introduced outdoor and multi-Gigabit PoE midspans and has significantly contributed to the IEEE 802.3af/at/bt standards. They continue to innovate, focusing on supporting new applications requiring higher power and greater speed, for both indoor and outdoor uses. Microchip advancements aim to reduce operating expenses and facilitate faster deployment.
Robust and Reliable PoE Solutions for Network Infrastructure
Microchip is a leading innovator in PoE technology, uniquely supplying PoE Powered Device (PD) ICs, Power Sourcing Equipment (PSE) ICs, PoE systems, and test equipment.
Microchip PSE ICs integrate into various networking devices to efficiently power networks. For non-PoE equipment, Microchip offers midspans and specialty switches that deliver power and data over Ethernet cables without changing the existing infrastructure. Microchip provides a range of PoE midspans and switches with different power levels, port numbers, and data rates for various environments. Microchip's certified PoE systems enable easy deployment even in challenging settings, maximizing infrastructure investment.
Gen 7 PoE PSE ICs Powering Switches, Routers, Gateways and Midspans
Building on previous successes, Microchip introduced their seventh-generation PSE chipset with improved power management and surge protection for PoE switches, midspans/injectors, and wireless routers.
The PD77020 PoE PSE Controller and PD77728 PoE PSE Manager offer an IEEE 802.3bt-compliant solution, supporting 4 to 48 ports with 90W per port.
The highly integrated solution is both a power-efficient and surge-focused design. The high level of integration of the PD77728 PoE PSE manager makes a simple solution that uses minimal board area.
The total power dissipation of the PoE PSE Manager remains less than 2 Watts, eliminating the need for a heat sink and improving energy efficiency. The PD77728 includes internal surge protection circuitry to withstand a 2kV surge enhancing system reliability.
Highly Integrated PoE PD Solutions
Microchip's PD Integrated Circuits (ICs) are compact solutions that convert PoE input power into one or more output voltages, available with or without integrated Pulse-Width Modulation (PWM) controllers.
Microchip IdealBridge™ dual-pack MOSFET-based full-bridge rectifier offers protection against reverse-polarity connections, reduces power consumption, saves space, and improves thermal performance in applications such as WLAN access points, 5G small cells, network IP cameras, LED lighting, IoT appliances, and IP telephones.
As a pioneer in PoE technology, Microchip uniquely supplies PoE PD ICs, PSE ICs, PoE systems, and test equipment. This comprehensive range supports diverse applications, enhancing efficiency and performance. Microchip's innovative solutions address various power and networking needs across multiple industries
Key Benefits of Microchip PoE PD ICs
- Offer the highest integration level and lowest total BOM cost
- Leverage a mixed portfolio of devices that can be used in indoor, outdoor and industrial applications
- Meet the high powering needs of 2-pair and 4-pair PDs including IEEE® 802.11ac/ax access points, information kiosks, POS terminals, thin clients, 5G small cells, industrial automation systems and connected LED luminaires/sensors
- Comply with industry standards such as IEEE 802.3af/at and Power-over-HDBaseT (PoH)
PoE Midspans Powering OEM Network Devices
Microchip offers customized solutions for manufacturers developing devices such as IP cameras and wireless Access Points that utilize PoE technology.
This includes the option to create private-label PoE midspans/switches, allowing manufacturers to provide complete, plug-and-play solutions alongside their devices.
By integrating IP-based devices with PoE midspans/switches, OEMs can enhance sales opportunities and competitiveness by ensuring reliable power delivery across various network environments.
Microchip enables manufacturers to offer complete solutions by providing both devices and midspans under the manufacturer's brand, ensuring quality assurance, seamless integration, and simplified installation for customers.
Manufacturers can customize midspan/switch elements like branding without extra cost, allowing them to market products with their own name and logo. This approach enhances customer satisfaction and strengthens the manufacturer's market presence.
