STMicroelectronics ALED7709

ALED7709 - Automotive LED driver 4-channel 200 mA with a DC-DC controller

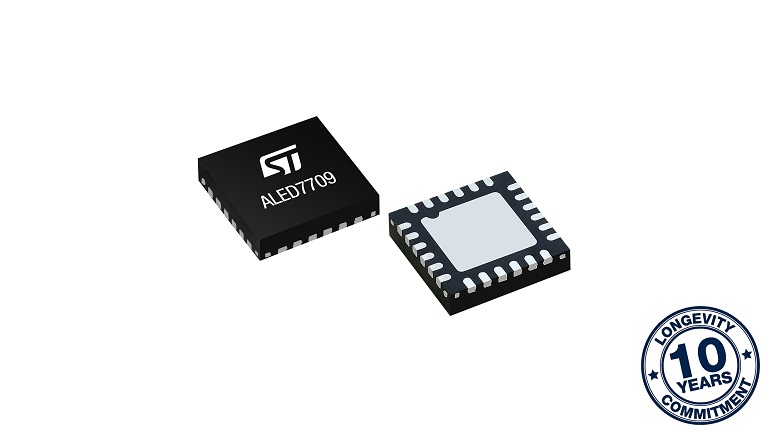

STMicroelectronics ALED7709 - front and back side of the chip

ALED7709x are automotive-grade (AEC-Q100 Grade1 qualified) LED drivers combining a boost/SEPIC controller and four low-side constant-current sinkers, designed to drive strings of high brightness LEDs. The switching converter section provides the supply rail for the LED strings, whose value is constantly optimized for maximum efficiency. The boost/SEPIC controller supports the external synchronization and spread spectrum. ALED7709x can work simultaneously or exclusively in standalone mode (SAM), controlled only by PWMI signal, and in bus driven mode (BDM) through an I2C serial interface. The brightness of the four LED strings can be controlled either in global or local mode. In global mode, the ALED7709x supports a mixed PWM and analog dimming to improve the brightness range capability. Only the BDM provides full access to ALED7709x advanced features. PWM dimming frequency can be programmed changing the setting of the internal 16-bit counter, while an internal oscillator avoids the use of an external clock source.

The ALED7709A is dedicated to BDM while ALED7709B is more suitable for SAM. ALED7709x implement basic protections (overvoltage, overcurrent, and thermal shutdown) as well as “Open and Short” LED fault detection, with optional channel auto-disconnect in case of fault.

The devices support an optional P-channel MOSFET in series to the input. It protects the system, LED strings and channels in case of some faulty conditions, output short-to-ground or excessive input voltage transients and it also reduces the power consumption when in standby.



Features

  • AEC-Q100 Grade1 qualified
    • Operating temperature range -40 °C < TJ < 150 °C
  • 4.5 V to 42 V operating input voltage range
    • Up to 60 V tolerant for load dump @ 24 V battery
    • Supports battery cranking events down to 4 V supply
  • Simultaneous or exclusive control by PWMI and I2C interface
  • Switching controller section
    • Low shutdown current: ISHDN < 15 µA
    • Fixed frequency peak current-mode controller
    • Cycle-by-cycle power switch OCP
    • Adjustable (250 kHz to 2.2 MHz) switching frequency with optional spread spectrum
    • Synchronized boost and SEPIC topologies support
    • Line switch control for standby power saving and inrush current protection
    • Input overvoltage and output short-circuit protection
  • LED strings control section
    • 4 x 40 V rated constant current outputs
    • Adjustable up to 200 mA per channel
    • ±2% typ. output current accuracy
    • Mixed PWM and Analog dimming
    • 100 Hz to 12.8 kHz dimming frequency
    • Dimming ratio 10000:1 at 100 Hz
    • LED temperature sensor (NTC) management
    • Selectable channels phase-shifting and adjustable Rise/Fall time for reducing EMI
    • Open channel, LED short-circuit detection
    • Two versions available: ALED7709A and ALED7709B
