Digi ConnectCore® 93 SoM

ConnectCore® 93 SoM - Wireless, highly power-efficient and secure system-on-module

Digi ConnectCore® 93 is a wireless, highly power-efficient and secure system-on-module based on the NXP i.MX 93 processor. It offers flexible connectivity with integrated 802.11ax dual-band Wi-Fi 6 and Bluetooth® 5.2, and integrates an AI/ML NPU. The Digi SMTplus® form factor (40x45mm) and industrial rating provide outstanding reliability for a wide range of IoT applications.

This SOM is designed for longevity, scalability and demanding 10+ year product lifecycles. The ConnectCore solution provides ready-to-use building blocks and a vast collection of development tools and integrates cloud and security services for lower total cost of ownership, streamlined time-to-market, and complete lifecycle management.



Key features

• Industrial i.MX 93 single/dual-core embedded SOM platform
• AI/ML Arm® Ethos U65 micro neural processing unit (NPU)
• Pre-certified dual-band 802.11ax Wi-Fi 6 and Bluetooth® 5.2
• Digi SMTplus® form factor (40 mm x 45 mm) for ultimate reliability
• Superior power management with hardware and software support
• Seamless cellular modem and Digi XBee® integration
• High level of pin-compatibility with Digi ConnectCore® 8 SOMs
• Built-in Digi TrustFence® device security, identity and privacy
• Remote management with Digi ConnectCore® Cloud Services
• Digi Embedded Yocto Linux® support



Block diagram

Click to enlarge



Part numbers

Part number	Description
CC-WMX-YC7D-KN	ConnectCore 93 Dual, i.MX 93 Dual A55, M33, NPU, 1GB LPDDR4, 8GB eMMC, -40/+85C, MCA, Wi-Fi 802.11ax, Bluetooth 5.2
CC-MX-YC7D-ZN	ConnectCore 93 Dual, i.MX 93 Dual A55, M33, NPU, 1GB LPDDR4, 8GB eMMC, -40/+85C, MCA
CC-WMX-ZC6D-L1	ConnectCore 93, i.MX 93 Single A55, M33, no NPU, 512MB LPDDR4, 8GB eMMC, -40/+85C, no MCA, Wi-Fi 802.11ax, Bluetooth 5.2
CC-MX-ZC6D-Z1	ConnectCore 93, i.MX 93 Single A55, M33, no NPU, 512MB LPDDR4, 8GB eMMC, -40/+85C, no MCA

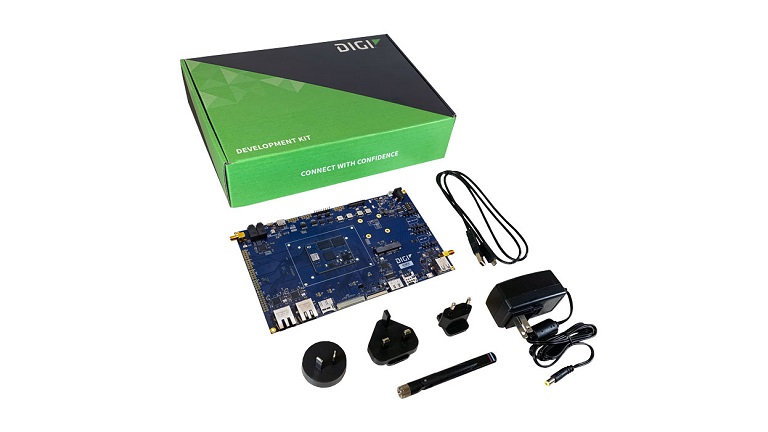

Digi ConnectCore® 93 Develpoment Kit



Part number	Description
CC-WMX93-KIT	Development Kit with development board , i.MX 93 dual-core, NPU, 8GB eMMC, 1 GB LPDDR4 wireless SOM



silica content library/npi/2023/digi-cc-93 Digi ConnectCore® 93 SoM | Avnet Silica

silica content library/npi/2023/digi-cc-93 Digi ConnectCore® 93 SoM | Avnet Silica

Links & Documents Product page Datasheet Development Kit
