NXP i.MX RT series

NXP i.MX RT series - Crossover processors with Arm® Cortex®-m7 core (i.MX RT1050)

Driving the convergence of applications processors and MCUs

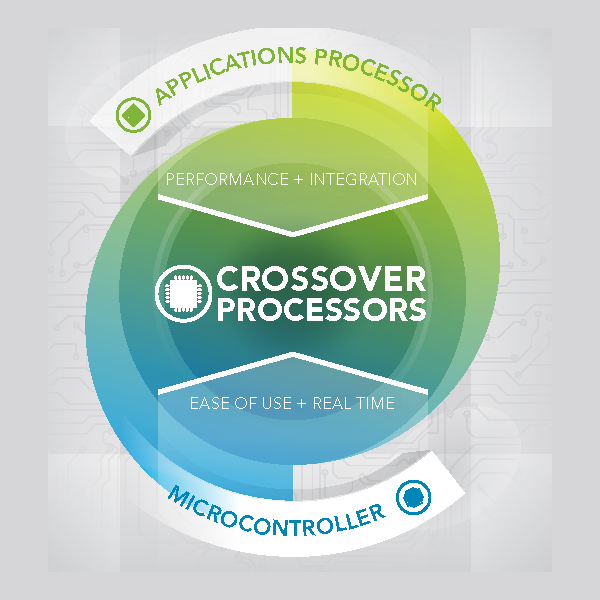

NXP introduces crossover processors: the convergence of low power applications processors and high performance microcontrollers. The i.MX RT Series is the industry’s first crossover processor, offering the highest performance ARM® Cortex®-M core, real-time functionality and MCU usability at an affordable price.

Products are built using i.MX technology and have performance over 600 MHz. i.MX RT series bridges the gap between the traditional MCUs and the i.MX space, allowing MCU customers a path for significant performance and integration improvements, without sacrificing ease-of-use.

Key features

Specifications
- Package: MAPBGA196 | 10x10mm², 0.65mm pitch (130 GPIOs)
- Temp / Qual: -40 to 105°C (Tj) Industrial / 0 to 95°C (Tj) Consumer
High Performance Real-time system
- Cortex-M7 up to 600MHz, 50% faster than any other existing M7 products
- 20ns interrupt latency, a TRUE Real time processor
- 512KB SRAM, configurable to 512KB TCM
Rich Peripheral
- Motor Control: Flex PWM x 4, Quad Timer x 4, ENC x 4
- 2x USB, 2x SDIO, 2x CAN, 1x ENET with 1588, 8xUART, 4x SPI, 4x I2C
- 8/16-bit CSI interface and 8/16/24-bit LCD interface
- Qual-SPI interface, with Bus Encryption Engine
- Audio interface: 3x SAI/ SPDIF RX & TX/ 1x ESAI
Security
- TRNG & PRNG (NIST SP 800-90 Certified)
- 128-AES cryptography
- Bus Encryption Engine: Protect QSPI Flash Content
Ease of Use
- FreeRTOS with SDK
- MCUXpresso
- Comprehensive ecosystem
Low BOM Cost
- Competitive Price
- Fully integrated PMIC with DC-DC
- Low cost package, 10x10 BGA with 0.65mm Pitch
- SDRAM interface

Applications

Audio Subsystem - professional microphone, guitar pedals
Consumer Products - smart appliances, cameras, LCDs
Home and Building Automation - HVAC climate control, security, lighting control panels, IoT gateways
Industrial Computing Designs - EBS, PLCs, factory automation, test and measurement, M2M, HMI control assembly line robotics
Motor Control and Power Conversion - 3D printers, thermal printers, unmanned autonomous vehicles, robotic vacuum cleaners

Body Content Spots

Supplier Logo

Content Spots

NXP

i.MX RT1024

The i.MX RT1024 expands the i.MX RT series by providing a small, low-cost crossover package in LQFP packaging, further simplifying board design and layout for customers. The i.MX RT1024 runs on the Arm® Cortex-M7® core at up to 500 MHz.
