Safe Isolation
Broadcom’s opto-isolation solutions provide unmatched high voltage protection and signal isolation that meet or exceed international safety standards.
Power Conversion and Management
Broadcom Power over Fiber family includes the high power laser and the optical power converters. Our products control and power high voltage gate drives using galvanic isolation.
Safe isolation
Broadcom’s opto-isolation solutions provide unmatched high voltage protection and signal isolation that meet or exceed international safety standards. Broadcom optocouplers, including digital optocouplers, isolation amplifiers and gate drive optocouplers, are used in a broad array of applications ranging from power supply and motor control circuits to data communication and digital logic interfaces.
For higher creepage and clearance, Broadcom Fiber Optic (FO) Short Link products are cost-effective semiconductor products that provide up to 50kV transient galvanic isolation on a single PCB. Based on 650nm fiber optic technology, the FO Short Link devices are suitable for applications such as inverters/drives, power electronics, or medical equipment.
Optocouplers
- Gate Drivers
- Current & Voltage Sensing
- SiC & GaN Reference Designs
- Digital Optocouplers
Gate drives
New – product highlight - 10A gate drive optocoupler product family
ACFL-3161 / ACFJ-3262 - 10A Single and Dual-Channel Basic Gate Drive Optocouplers
These 10A single and dual-channel basic gate drivers come in SSO-12 and SSO-24 packages, designed for high voltage, space constrained industrial applications like motor drives and inverters. The new compact package features 600V CTI mold which reduces the creepage requirement due to high voltage applications.
ACFL-3161 – 10 A gate drive optocouplers LEARN MORE
ACFJ-3262 – 10 A dual-channel gate drive optocoupler LEARN MORE
ACPL-355JC - 10A Smart Gate Driver with Protection and Feedback
The ACPL-355JC is a 10A gate drive optocoupler device with integrated fail-safe IGBT and SiC MOSFET diagnostics, protection and fault reporting. The device features common mode transient immunity (CMTI) greater than 100 kV/μs and provides minimal propagation delay with excellent timing skew. The high peak output current and wide operating voltage range eliminate the need of an output buffer circuit, enabling designers to implement cost-effective gate driver solutions for motor drives and power inverters.
Packaged in a compact, surface-mountable 600V CTI SO-16 package, this full-featured and easy-to-implement gate drive optocoupler is certified to provide reinforced insulation with 2,262 VPEAK working voltage meeting safety regulatory IEC/EN/DIN, UL, and CSA.
Current & voltage sensing
Product highlight – ACPL-C87B and ACPL-736J
Current and Voltage Sense Optocouplers are used for isolating current and voltage sense and are typically used to measure phase currents (with shunt resistors) or DC-link voltages in three phase frequency converter power applications.
ACPL-C87B – Precision Optically Isolated Voltage Sensor. The ACPL-C87B voltage sensor 2V input range and high 1GΩ input impedance, makes it well suited for isolated voltage sensing requirements in electronic power converters applications including motor drives and renewable energy systems. LEARN MORE
ACPL-736J – Optically Isolated ±50 mV Sigma-Delta Modulator with CMOS Interface. ACPL-736J is a 1-bit, second-order sigma- delta (Σ-Δ) modulator that oversamples an analog input signal into a high speed data stream with galvanic isolation based on optical coupling technology. The ACPL-736J operates from a 5 V power supply with dynamic range of 80 dB with an appropriate digital filter. LEARN MORE
SiC Reference Designs
Infineon EasyDUAL 1B SiC Module LEARN MORE
STM HiP247 SiC MOSFET LEARN MORE
GaN Reference Designs
Nexperia GAN039-650NBB GaN FET LEARN MORE
Digital optocouplers
New – product highlight – ACNT-H61LC / ACNT-H511C (high CTI optocouplers)
ACNT-H61LC low power 10 MBd digital CMOS optocoupler in 600V CTI package LEARN MORE
ACNT-H511C single-channel open collector optocoupler in 600V CTI package LEARN MORE
High Voltage Insulation ACNT Family - Discover the ACNT family that offers better insulation for higher voltages – with up to 15mm creepage and clearance. LEARN MORE
High voltage on-board Insulation
For higher isolation, Broadcom Fiber Optic (FO) Short Link products are cost-effective semiconductor products that provide up to 50kV transient galvanic isolation on a single PCB. Based on 650nm fiber optic technology, the FO Short Link devices are suitable for applications such as inverters/drives, power electronics, or medical equipment.
|
Applications:
|
Features:
|
AFBR-3950xxRZ isolation fiber optic short link LEARN MORE
AFBR-3905xxRZ galvanic isolation fiber optic short link LEARN MORE
Example of products:
High Galvanic Isolation Link LEARN MORE
High Voltage on-board Insulation „Short Link“
| High Voltage Galvanic Insulation Link | ||||||||
|---|---|---|---|---|---|---|---|---|
| Creepage/Clearance | 25mm | 50mm | 75mm | 100mm | ||||
| Transient peak voltage suppression* | up to 15 kV | up to 27 kV | up to 40 kV | up to 50 kV | ||||
| Max. effective working voltage* | 3kV | 6kV | 9kV | 12kV | ||||
| Speed: DC to | 5MBd | 50MBd | 5MBd | 50MBd | 5MBd | 50MBd | 5MBd | 50MBd |
| Part number: AFBR- | 390525RZ | 395025RZ | 390550RZ | 395050RZ | 390575RZ | 395075RZ | 390500RZ | 395000RZ |
| *as per IEC-60664-1 @2000m above sea level and pollution degree 2, inhomogeneous field conditions may lead to partial discharge through air for these voltages | ||||||||
Power conversion and management
Broadcom's Power over Fiber family: Optical power and data link

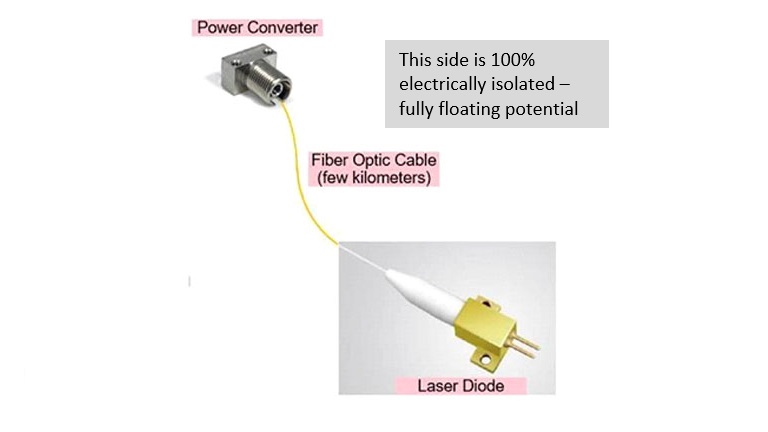

Optical Power over Fiber family includes the high power laser and the optical power converters. Our products control and power high voltage gate drives using galvanic isolation. LEARN MORE
|
|
|
|
Markets & Applications: Isolated power and communication in
|
Emerging applications:
|
Optical power and data link evaluation kit
AFBR-PDPEK521 – Evalkits are available now!
AFBR-PDPEK521 3Mbps Bi-Directional Optical Power and Data Link Evaluation Kit
Features:
- Deliver isolated electrical power up to 500mW (50m fiber)
- Data Rate: 3Mbps (Bidi)
- Link length: 2km over OM1 62.5/125um
- Op Temp (TxM): -30°C to +65°C
- Op Temp (RxM): -40°C to +85°C
- Power Diss (TxM): 15W
- Power Diss (RxM): 100mW
- Laser Class: Class 4, IEC60825-1
- Electrical Conn (TxM): PoE, IEEE1508.3, Type 2
- Electrical Conn (RxM): SPI, I2C, GPIO, Analog
- Mechanical Dimensions: TxM 150 x 85 x 42 mm
RxM 84 x 36 x 26 mm
Target Applications:
Optical isolation of power and data for remote sensors and actuators
Optical power converter – overview
| Part Numbers | AFBR-POC206L | AFBR-POC204L | AFBR-POC406L | AFBR-POC404L |
|---|---|---|---|---|
| Wavelength | 800 – 850 nm | 800 – 850 nm | 800 – 850 nm | 800 – 850 nm |
| Min. Output Voltage | 5.6 V | 3.7 V | 5.6 V | 3.7 V |
| Max. Output Power | 600 mW | 600 mW | 600 mW | 600 mW |
| Connector | FC | FC | ST | ST |
| Fiber |
62.5µm glass 200µm glass |
62.5µm glass 200µm glass |
62.5µm glass 200µm glass |
62.5µm glass 200µm glass |
| Temperature | -40 to 85degC | -40 to 85degC | -40 to 85degC | -40 to 85degC |
| Applications | HVDC Current Monitoring, sensor nodes (trains, airplanes, medical), fiber-powered security cameras | |||
