MAX22700–MAX22702
Ultra-High CMTI Isolated Gate Drivers
Integrated Isolation with High CMTI to Improve Robustness for SiC Gate Driver
The MAX22700–MAX22702 are a family of single-channel isolated gate drivers with ultra-high common-mode transient immunity (CMTI) of 300kV/μs (typ). The devices are designed to drive silicon-carbide (SiC) or gallium-nitride (GaN) transistors in various inverter or motor control applications. All devices have integrated digital galvanic isolation using Maxim’s proprietary process technology. The devices feature variants with output options for gate driver common pin GNDB (MAX22700), Miller clamp (MAX22701), and adjustable undervoltage-lockout UVLO (MAX22702). In addition, variants are offered as differential (D versions) or single-ended (E versions) inputs. These devices transfer digital signals between circuits with different power domains. All of the devices in the family feature isolation for a withstand voltage rating of 3kVRMS for 60 seconds.
All devices support a minimum pulse width of 20ns with a maximum pulse width distortion of 2ns. The part-to-part propagation delay is matched within 2ns (max) at +25°C ambient temperature, and 5ns (max) over the -40°C to +125°C operating temperature range. This feature reduces the power transistor’s dead time, thus improving overall efficiency.
The MAX22700 and the MAX22702 have a maximum RDSON of 1.25Ω for the low-side driver, and the MAX22701 has an RDSON of 2.5Ω for the low-side driver. All devices have a maximum RDSON of 4.5Ω for the high-side driver. See the Ordering Information for suffixes associated with each option.
The MAX22700–MAX22702 can be used to drive SiC or GaN FETs with different output gate drive circuitry and B-side supply voltages. See the Typical Operating Circuits for details.
All of the devices in the MAX22700–MAX22702 family are available in an 8-pin, narrow-body SOIC package with 4mm of creepage and clearance. The package material has a minimum comparative tracking index (CTI) of 600V, which gives it a group I rating in creepage tables. All devices are rated for operation at ambient temperatures of -40°C to +125°C.
Key Features
- Matching Propagation Delay
- 20ns Minimum Pulse Width
- 35ns Propagation Delay at Room Temperature
- 2ns Part-to-Part Propagation Delay Matching at Room Temperature
- 5ns Part-to-Part Propagation Delay Matching over -40°C to +125°C Temperature Range
- High CMTI (300kV/μs, typ)
- Robust Galvanic Isolation
- Withstands 3kVRMS for 60s (VISO)
- Continuously Withstands 848VRMS (VIOWM)
- Withstands ±5kV Surge Between GNDA and VSSB with 1.2/50μs Waveform
- Precision UVLO
- Options to Support a Broad Range of Applications
- 3 Output Options: GNDB, Miller Clamp, or Adjustable UVLO
- 2 Input Configurations: Single-Ended with Enable (E versions) or Differential (D versions)
Applications/Uses
- Isolated Gate Driver for Inverters
- Motor Drives
- UPS and PV Inverters
Related links:
Download Datasheet: MAX22700D-MAX22702E
Download Design Solution:
Choose a High CMTI Gate Driver That Cuts Your SiC Switch Dead-Time

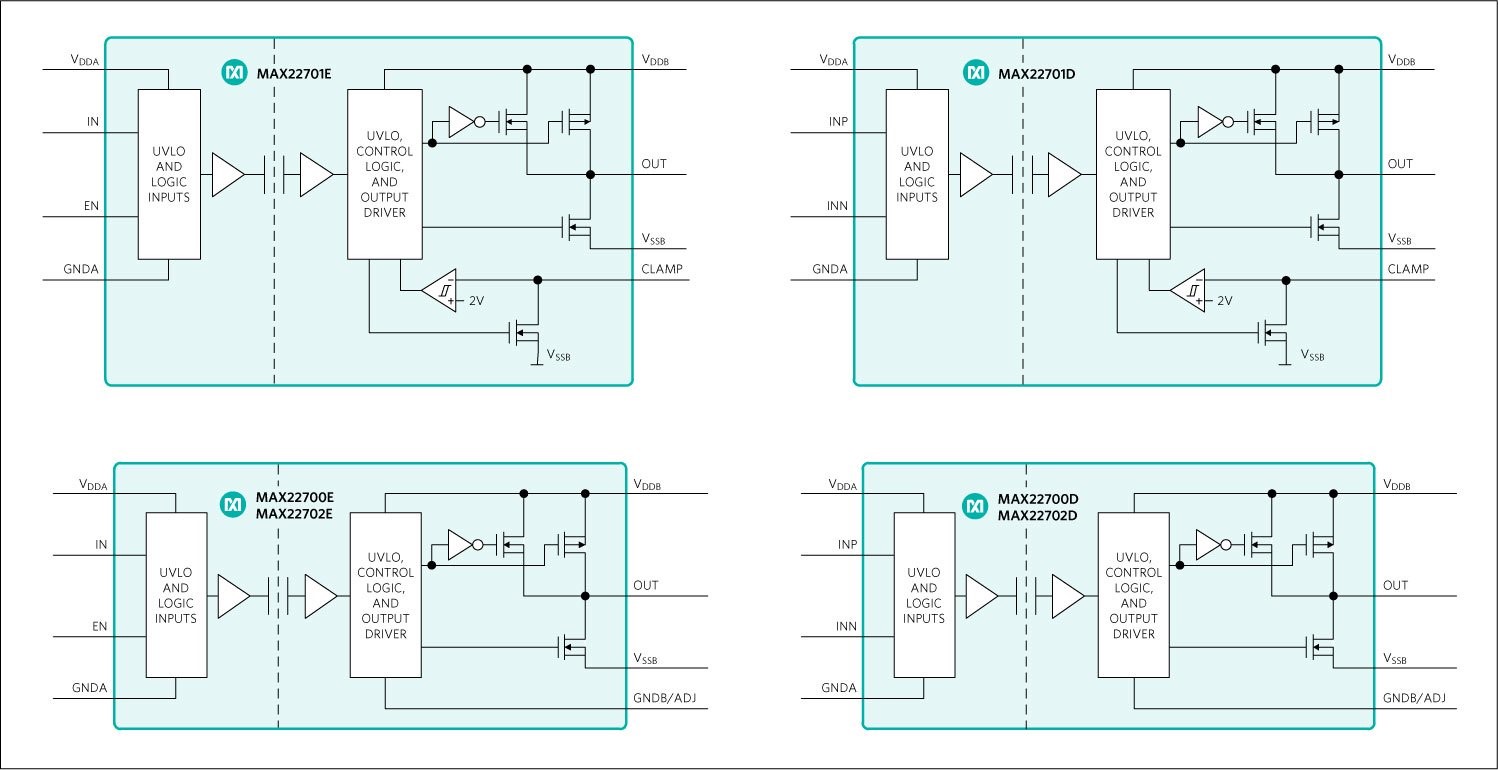

MAX22700D, MAX22700E, MAX22701D, MAX22701E, MAX22702D, MAX22702E Functional Diagrams
Enlarge+
Himalaya uSLIC Power Modules
Himalaya uSLIC™ DC-DC power modules use the latest semiconductor process and packaging technology to deliver the smallest solution size, while minimizing temperature rise and total cost-of-ownership. The family offers a broad selection of products addressing diverse input voltage requirements from 2.9V to 5.5V and 4.5V to 24V/42V/60V, with output current capability ranging from 100mA to 2A in an ultra-small package. Compared to discrete-style implementations, the Himalaya uSLIC power modules shrink the power supply solution size by up to 2.25x, creating a micro-sized system-level IC (uSLIC). This is achieved by integrating a synchronous wide-input Himalaya buck converter—which includes built-in FETs, compensation, and additional functions—with an inductor.
The combination of these components results in ultra-small power modules that can be used in a wide variety of applications, from low-voltage battery applications to large factory automation applications. These uSLIC modules enable power supplies to be designed into very tight space-constrained areas and enable reliable and robust power conversion. The modules comply with the JESD22-B103/B104/B111 mechanical standard as well as the CISPR 22 electromagnetic interference (EMI) standard, helping to improve the first-time success rate for EMI certification of your end products.
Watch Video: Himalaya uSLIC Modules: High-Efficiency Power in Tiny Packages
Related links:
Download Product Guide: Power Management for Energy Distribution Automation
Download Design Solution: Power Your PLC with a Small POL Module
Featured Products:
| VIN |
VOUT |
IOUT |
Product |
| 4.5V to 36V |
0.9V to 12V |
2A |
MAXM17635 NEW!
|
| 4.5V to 36V |
0.9V to 12V |
1A |
MAXM17632 NEW!
|
| 2.9V to 5.5V |
1.5V to 3.3V |
1A |
MAXM17624 NEW!
|
| 4.5V to 24V |
0.9V to 6.3V |
300mA |
MAXM17906 NEW!
|
| 4.5V to 42V |
0.9V to 6.3V |
300mA |
MAXM15467 NEW!
|
| 4.5V to 60V |
0.9V to 6.3V |
300mA |
MAXM15067 NEW!
|
| 4.5V to 60V |
5V to 12V |
200mA |
MAXM15068 NEW!
|
| 4.0V to 60V |
2.5V to 5.0V & 2.5V |
0.1A & 0.05A |
MAXM17724 NEW!
|
Himalaya Step-Down Switching Regulators
Himalaya DC-DC step-down regulators make use of the latest advancements in switching regulator and process technology to minimize power dissipation, temperature rise, solution size, and total cost-of-ownership.
Himalaya buck converters enable synchronous rectification over a wide input range from 4.5V min to 36V, 42V, 60V or 76V max, supporting output currents from 25mA to 5A with internal MOSFETs.
Smart, wide-bandwidth internal compensation supports varying circuit conditions and retains an optimized loop bandwidth for a wide range of operating circuit parameters. A robust protection scheme provides high reliability over the -40°C to +125°C temperature range. Himalaya buck converters and optimized evaluation kits are compliant to the CISPR 22 electromagnetic interference (EMI) standard, to help increase the first-time success rate for EMI certification testing of your end products.
Watch Video: Understanding Power Losses in a Buck Converter
Related links:
Download White Paper: Meeting the Efficiency and Power Dissipation Needs of Space-Constrained Applications
Download Application Note: Mitigating EMI for A CISPR 22-Compliant Power Solution
| |
VIN |
IOUT |
Product |
| 76V INPUT, SINGLE OUTPUT |
4.5V to 76V |
1A |
MAX17761
|
| 60V INPUT, SINGLE OUTPUT |
4.5V to 60V |
300mA |
MAX15062
|
| 4.5V to 60V |
5A |
MAX17506 |
| 60V INPUT, DUAL OUTPUT |
4.5V to 60V |
1A per output |
MAX17521
|
| 42V INPUT, SINGLE OUTPUT |
4.5V to 42V |
5A |
MAX17546
|
| 42V INPUT, DUAL OUTPUT |
4.5V to 42V |
10A per output1 |
MAX17548
|
| 36V INPUT, SINGLE OUTPUT |
4.5V to 36V |
3.5A |
MAX17633
|
Note1: Controller ICs for use with external MOSFETs to support high current applications
Learn more about Maxim’s Switching Regulators
