Postcrash & 48V battery
Battery switch (MOSFET gate driver)
A battery switch becomes also in the 12V network more and more state of the art. It is needed to disconnect the battery in case of an accident or connect and disconnect a second battery for grid stability and for power saving functionalities. To manage the power distribution a battery switch on the 48V side is in general required.

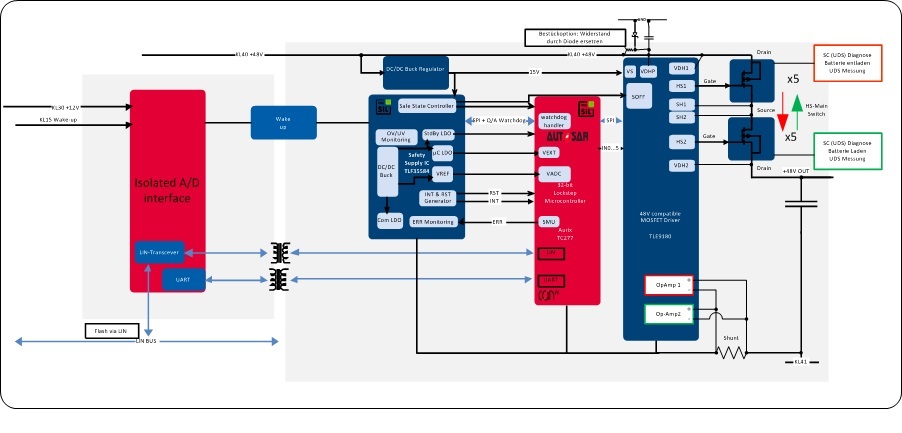

Application diagram
| Part Number | Description | Read More / Buy Now |
|---|---|---|
| IAUC100N08S5N043 |
Transistor MOSFET N-CH 80V 100A 8-Pin TDSON T/R
|
|
| IAUT300N10S5N015 | OptiMOS 100V 300A HSOF-8 | |
| IAUT260N10S5N019 | OptiMOS-5 Power Transistor MOSFET N-Channel 100V 260A 8-Pin PG-HSOF-1 T/R | |
| IAUT150N10S5N035 | OptiMOS 100V 150A HSOF-8 | |
| IAUC100N10S5L040 | Trans MOSFET N-CH 100V 100A 8-Pin PG-TDSON T/R | |
| TLE9180D-21QK | 48V 3 Phase Driver | |
| TLE9180D-31QK | 48V 3 Phase Driver | |
| BTS70402EPAXUMA1 | BTS70402EPAXUMA1 | |
| BTS70802EPAXUMA1 | PROFET+2 Smart High-Side Power Switch Dual Channel 2x80mΩ PG-TSDSO-14-22 Surface Mount T/R | |
| BTS71202EPAXUMA1 | PROFET+2 High-side Switch for Energy Efficiency and Miniaturization Integrated Ground Diode 2-Channel 2x 10W 14-Pin TSDSO | |
| BTS72002EPCXUMA1 | PROFET | |
| BTS712204ESAXUMA1 | Power Switch High Side 5A 24-Pin TSDSO T/R | Buy Now |
| BTS712204ESEXUMA1 | SPOC | Buy Now |
| BTS722204ESAXUMA1 | SPOC | Buy Now |
| BTS722204ESEXUMA1 | SPOC | Buy Now |
| BTS710404ESAXUMA1 | Power Switch High Side 12A 24-Pin TSDSO T/R | |
| BTS50081EKBXUMA1 | The BTS5008-1EKB is a 8 mΩ single channel Smart High-Side Power Switch | |
| BTS50101EKBXUMA1 | The BTS5010-1EKB is a 16 mΩ single channel Smart High-Side Power Switch | |
| BTS50121EKBXUMA1 | The BTS5012-1EKB is a 12 mΩ single channel Smart High-Side Power Switch |
